Focal Es 165 Kx3E Elite K2 Power Series 6-1/2" 3-Way Component Speaker System
Sublime 3-way system
Handmade in France, the Elite K2 Power Series ES 165 KX3E component system is the culmination of Focal's passion for perfect sound. Focal's sound gurus engaged in intensive listening sessions designing this line of speakers so that you enjoy uncanny realism, sweeping dynamics, and breathtaking depth in your music. This Focal system includes tweeters, midrange drivers, adjustable crossovers, and woofers to recreate a refined 3-way sound experience that matches their home speakers.
A classic woofer with a twist
The 6-1/2" woofer uses Focal's classic "W" sandwich cone design for incredibly accurate audio reproduction. The light foam core is sandwiched between the nimble aramid fiber and fiberglass layers, so the woofer can demonstrate the control needed to play delicate classical passages, yet handle the power needed to drive your bass-heavy tracks with authority. Focal adds a Tuned Mass Damper (TMD®) rubber surround which minimizes harmonic distortion for the cleanest midrange possible. The 3" driver in this 3-way system uses the same sandwich cone to deliver all the midrange details, as well as an aluminum phase plug for extended frequency response.
The two included Focal crossovers provide five level and crossover slope settings to dial in the sound in your vehicle.
A responsive tweeter
Focal employs a unique 1-1/8" aramid fiber tweeter with an "M"-shaped inverted dome design that disperses the highs with remarkable precision, all the way up to 22,000 Hz. The K2 Power crossovers use hand-made components to deliver an ideal blend of the highs and lows for a dynamic stereo image. Five settings for tweeter, midrange, and woofer control let you dial in the sound to your car's environment.
Product highlights:

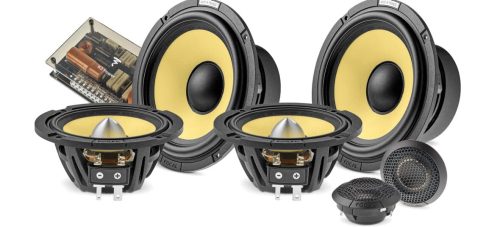

- component speaker system includes two 6-1/2" woofers, two 3" midrange drivers, 2 tweeters, 2 external crossovers, and hardware
- K2 aramid fiber sandwich cone for woofer and midrange driver
- 3" midrange driver with aluminum phase plug
- Tuned Mass Damper (TMD®) rubber surround
- 1-1/8" FRAK "M"-shaped inverted-dome tweeter
- 2-way external crossover with 5 settings for levels and crossover slopes
- 4-ohm impedance
- handles up to 120 watts RMS (240 watts peak power)
- frequency response: 45-22,000 Hz
- sensitivity: 93 dB at 2.83V
- woofer mounting depth: 3"
- flush-mount brackets, angled surface-mount brackets, and aluminum grilles included
- warranty: 1 year
- MFR # ES165KX3E
- Item # 091ES16X3E
What's in the box:
- Two woofers
- Focal owner's manual
- Two midrange
- Two inverted dome tweeters
- 2 Tweeter flush mount rings
- 2 Tweeter angled surface mount cups
- 2 Midrange/Tweeter surface mount housings
- 2 Crossover networks
- 2 Woofer grilles
- 2 Woofer grille mounting rings
- 2 Midrange grilles
- 2 Midrange grille mounting rings
- 2 Woofer mounting gaskets
- 2 Midrange mouting gaskets
- 16 Speed clips
- Eight 1" Screws
- Two 3/4" Screws
- Eight 5/8" Screws (Black)
- Two 5/8" Screws (Silver)
- Two M3x8mm Machine screws
- Quick start guide
- 2 Focal window stickers
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Design | 3-way | |
| Tweeter Design | M-Shaped Inverted Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Aluminum | |
| Woofer Composition | Aramid Fiber/Glass/Kevlar | |
| Woofer Surround | Butyl Rubber | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 89 | |
| Sensitivity at 2.83 volts | 93 | |
| Frequency Response | 45 - 22k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 120 | |
| Peak Power Handling (Watts) | 240 | |
| Top-mount Depth (Inches) | 3 | |
| Bottom-mount Depth (Inches) | 3 1/4 | |
| Cutout Diameter or Length (inches) | 5 5/8 | |
| Mounting Height (Inches) | 0.4 | |
| Frame Width | 6.495 | |
| Frame Length | 6.495 | |
