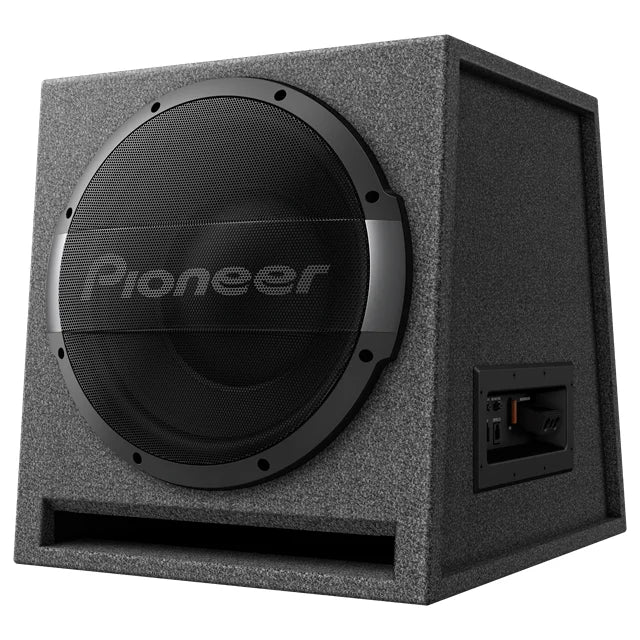

Pioneer 12” Premium Active Subwoofer In Ported Enclosure- TS-WX1210AH
12” PREMIUM ACTIVE SUBWOOFER IN PORTED ENCLOSURE
• 1,500 Watts Max Power (500 Watts Nom.)
• Built-In Class-D Amplifier
• Variable Bass Boost (0 to +12 dB, 40Hz to 100Hz)
• Wired Remote Bass Control & Gain Control on side panel
The Pioneer TS-WX1210AH Premium subwoofer is built to perform!
Featuring a boundary loaded bass-reflex slot port design, it’s sure to impress. The slot port is positioned on the bottom edge of the bass-reflex enclosure which maximizes the subwoofer system output SPL by boundary loading the combined output of the slot port and the subwoofer diaphragm. Powerful, deep and accurate bass response capable of reproducing a wide range of music genres such as hip hop, rock, pop, and country.
Powered by a class D amplifier specifically optimized for use in small sealed enclosures, the TS-WX1210AH will be sure to impress. User adjustable controls include a variable low pass filter (50Hz to 125Hz), phase control (Normal/Reverse) and variable bass boost (0 to +12 dB gain with 40Hz to 100Hz center frequency) providing enhanced control of subwoofer output. To expand system flexibility and user control, input gain can be adjusted using the included wired remote bass control knob or via the input gain control mounted on the enclosure side panel.
BOUNDARY LOADED BASS-REFLEX SLOT PORT DESIGN
The slot port is positioned on the bottom edge of the bass-reflex enclosure which maximizes the subwoofer system output SPL by boundary loading the combined output of the slot port and the subwoofer diaphragm. Powerful, deep and accurate bass response capable of reproducing a wide range of music genres such as hip hop, rock, pop, and country.
FLEXIBLE SOUND ADJUSTMENT
User adjustable controls include a LPF, phase control and variable bass boost (0 to +12 dB, 40Hz to 100Hz) providing enhanced control. To expand system flexibility and user control, input gain can be adjusted using the included wired remote bass control knob or via the input gain control mounted on the enclosure side panel.
INSTALL FLEXIBILITY
The innovative trapezoid shape of the enclosure is designed for high rigidity and to reduce internal standing waves, while also increasing installation flexibility. Can be installed freely in the cabin and re-positioned with the subwoofer firing rear, front or upwards for optimal bass tuning. The enclosure is fully carpeted, creating a non-slip, durable and scratch resistant surface.
| General | |
| Driver Size | 12" |
|---|---|
| Enclosure Dimensions | 373mm (W) x 459mm (D) x 400mm (H) |
| Max. Music Power (Nominal) | 1,500W MAX (500W Nom) |
| Warranty | 1 Year |
| Woofer Composition | Pulp |
| Woofer Surround | Urethane |
| Audio | |
| Frequency Response | 20 Hz to 2.9kHz (-20 dB) |
| Sensitivity (1W/1 m) | 89 dB |
