6.8″ AV RECEIVER
• 6.8” Capacitive Touch-Screen
• Apple CarPlay (Wireless or Wired Connection)
• Android Auto (Wireless or Wired Connection)
• Bluetooth
• WebLink®/WebLink® Cast
• Reverse Camera Input

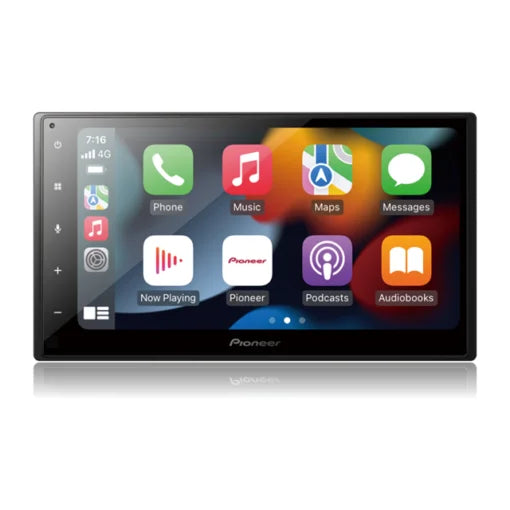

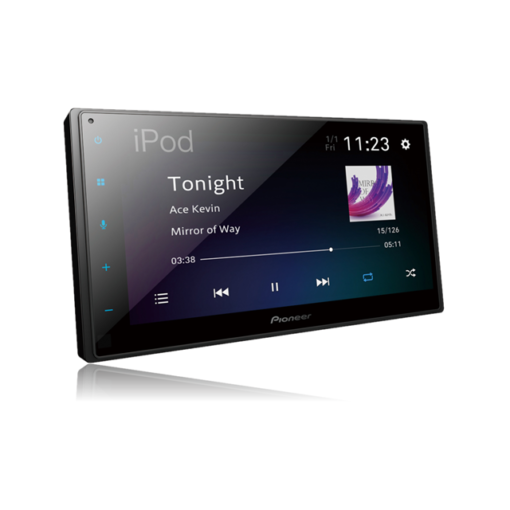

Getting the latest technology doesn’t have to break the budget with the Pioneer DMH-A5450BT featuring the very best in automotive smartphone technology, including Apple CarPlay® (wireless or wired connection), Android Auto™ (wireless or wired connection), Bluetooth®, plus reverse camera input.
Choose from a host of entertainment options, including USB with Full HD video playback supported**, AM/FM tuner, or Bluetooth music streaming, Android & iPhone Smartphone 2-way mirroring* (via cable connection) all controlled from a large, highly detailed 6.8-inch capacitive touch screen.
Audio performance is supported with a 13 Band GEQ and highly detailed crossover adjustments just to name a few. Supporting either 4 x 50w Max direct speaker outputs or for those running external amplifiers, 3 Pre-outs (FRT, RR & SW). No matter what, we have you covered!
APPLE CARPLAY™ (WIRELESS OR WIRED CONNECTION)
The best iPhone experience on four wheels; Apple CarPlay is a smart and safe way to control your iPhone® in the car. Apple CarPlay enables you to make calls, navigate with Apple Maps, WAZE or Google Maps, listen to music, plus send and receive SMS messages. You can even connect wirelessly to stay focused on the road.
ANDROID AUTO™ (WIRELESS OR WIRED CONNECTION)
Enjoy seamless connectivity and control of your Android smartphone in the car. Activate by using your voice, or the pressing the Pioneer touch-screen, Android Auto allows you to make phone calls, navigate with Google Maps, listen to music and send/receive SMS messages. Connect via wireless or cable connection to make any trip convenient.*
To wirelessly use Android Auto on your car display, you need a compatible Android smartphone with an active data plan. You can check which smartphones are compatible at g.co/androidauto/requirements.
Some features and devices may not be available in all countries. Subject to availability.
Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.
6.8″ CAPACITIVE TOUCH-SCREEN
A fully flat capacitive touchscreen that allows for fast and responsive touch gestures and very high detailed images.
BLUETOOTH CONNECTION
Stay safe and obey local hands-free laws with built-in Bluetooth (HFP). Easily pair a Bluetooth enabled phone without having to go through complicated settings. When a registered Bluetooth device is in close proximity to the receiver, the auto connection function automatically pairs the device.
From hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle much more convenient.
WEBLINK® & WEBLINK® CAST
WebLink® enables a compatible smartphone with the WebLink Host app installed to display and control compatible third-party applications from the in-dash receiver touchscreen. WebLink compatible apps provide services such as turn-by-turn navigation (i.e. Waze®), point of interest information and reviews, restaurant reservations, music entertainment, and more. WebLink enables this Pioneer receiver to deliver a modern infotainment system.
Additionally, with the built-in WebLink® Host application and a USB connection, drivers can also use the WebLink® Cast feature to mirror and interact with their iOS or Android smartphone’s screen on the receivers’ displays and access virtually all the same powerful navigation, communication, productivity and entertainment apps on a bigger screen and driver-friendly format.
REVERSE CAMERA INPUT
Reversing can be a stressful experience. The reverse camera input allows you to connect an optional camera for improved safety (visibility of hazards) and peace of mind, particularly when parking your vehicle or towing.
SHORT CHASSIS
The shallow depth of this product provides easy and flexible installation options.
| Display | |
| Screen Size | 6.8" |
|---|---|
| Resolution | WVGA (800 x 480) |
| Touchscreen | Capacitive |
| LED Backlight | Yes |
| Colour Customisation | 5 Key Illumination Colors |
| Bluetooth | |
| Built-in Bluetooth | Yes |
| Dual Phone Connection | No |
| Hands-Free Profile (HFP) | Yes |
| Audio/Video Remote Control Profile (AVRCP) | Yes |
| Advanced Audio Distribution Profile (A2DP) | Yes |
| Serial Port Profile (SPP) | Yes |
| Smartphone Pairing Memory | 5 Devices |
| Tuner | |
| AM/FM Tuner | Yes |
| DAB+ Tuner | No |
| Presets | 18 FM, 12 AM |
| Best Station Memory (BSM) | Yes |
| Local Seek Tuning | Yes |
| RDS | Yes |
| Smartphone Integration | |
| Apple CarPlay™ | Yes (Wireless or wired) |
| Android Auto™ | Yes (Wireless or wired) |
| Alexa Built In | No |
| Smartphone App | |
| Spotify® Control | No |
| WebLink® | Yes |
| Live Information | No |
| Siri® Eyes Free | Yes |
| Web Browser | No |
| Digital Media Playback | |
| CD/CD-R/CD-RW Playback | No |
| DVD/DVD-R/RW/DVD-Video Playback | No |
| MP3 Audio Playback | USB |
| WMA Audio Playback | USB |
| AAC Audio Playback | USB |
| WAV Audio Playback | USB |
| FLAC Audio Playback | USB |
| MPEG-4 Video Playback | USB |
| DivX Video Playback | No |
| WMV Video Playback | USB |
| JPEG Photo Slideshow Viewer | USB |
| Full HD Video Playback | Yes |
| Audio | |
| Hi-Res Audio Certified | No |
| RCA Pre-outs | 3 pair (front/rear/subwoofer) |
| Built-in Amplifier | MOSFET 4 x 50W |
| Auto EQ & Time Alignment (CD-MC20 required) | No |
| Specialized Audio Parts | No |
| D/A Converter | |
| Crossover Network | HPF/LPF |
| 3-Way Audio Network Mode | No |
| Subwoofer Control | Yes |
| Advanced Sound Retriever | No |
| Manual Time Alignment | No |
| Equalizer | 13-Band GEQ |
| Expandability | |
| iDataLink Maestro | |
| Wi-Fi Connectivity | No |
| USB | Single (Rear) |
| AUX | Rear (Audio/Video) |
| Reverse Camera Input | Yes |
| Parking Assist Guidelines | Yes |
| Wired Remote Input | Yes (Learning) |
| HDMI | No |
| Composite Video Output | Yes |
| General | |
| Remote Control | Yes |
| Warranty | 1 Year |
| Chassis Size | 2 DIN (125mm Depth) |
