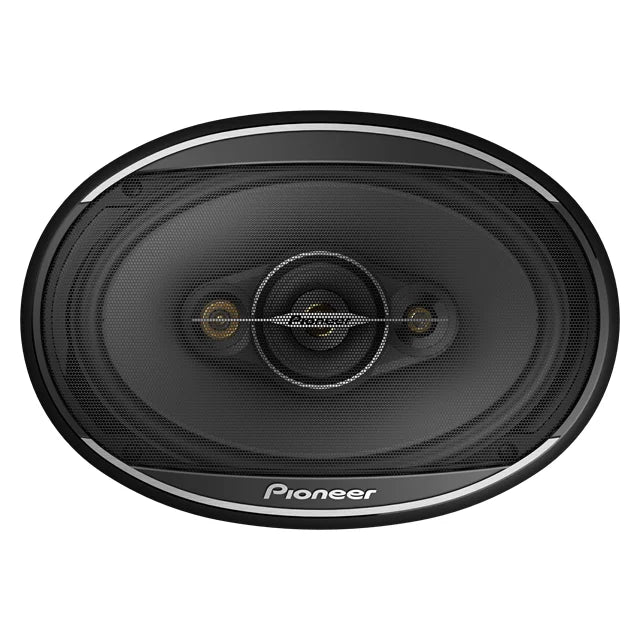

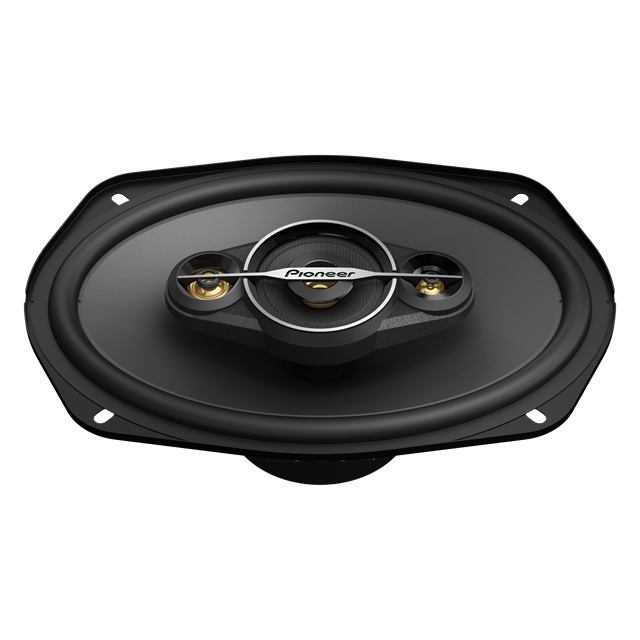

A-SERIES 6×9” 4-WAY COAXIAL SPEAKERS
• 450 Watts Max Power (90 Watts Nom).
• Carbon & Mica reinforced IMPP Cone Design.
• Pioneer “Open & Smooth”™ Sound Concept.
• Pioneer Designed Multi-Fit Speaker Adapters Included.
Pioneer’s latest generation of TS-A series speakers support the following features:
- Carbon & Mica reinforced IMPP cone construction for fast and deep bass response.
- A specially designed tweeter diaphragm to provide clear mid-range and highs with low distortion.
Designed to meet Pioneer’s “Open & Smooth” sound concept, these speakers are designed to perform at a wides range of audio frequencies, providing the listener with an “Open” (wide) sound staging and “Smooth” transition. With over 80 years of experience designing and manufacturing loudspeakers, we are confident you will enjoy the experience.

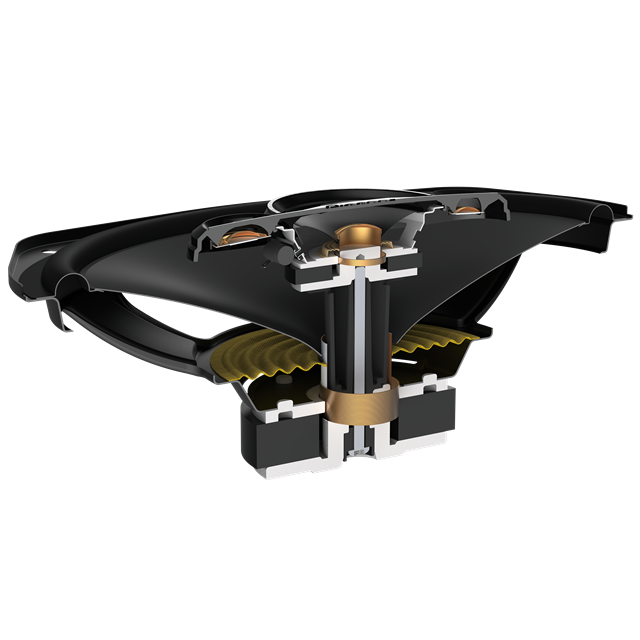

IMPP CONE CONSTRUCTION
Carbon & Mica reinforced IMPP cone for deeper and richer bass response.
Pioneer’s “Open & Smooth”™ Sound Concept
The Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.
EASY INSTALLATION

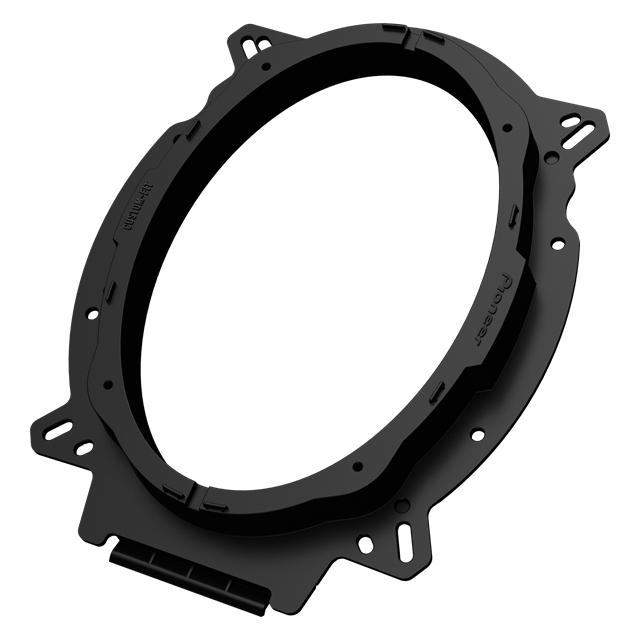

Included with the component system are 6×9″ multi-fit installation adaptors that expand flexibility and improve acoustic performance.
EV OPTIMIZED
The TS-A6961F speakers are the perfect addition for increased sound quality in your electric vehicle! High-efficiency with a sensitivity rating of 92dB, these speakers will not only provide optimal audio quality but are also designed to produce deep bass with minimal input.
CarSoundFit
Pioneer’s CarSoundFit app is a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and Pioneer audio upgrades and immerse yourself within the sound quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.
General | |
Size | 6x9" |
---|---|
Design | 6x9" 4-Way Coaxial |
Tweeter Design | 18mm |
Tweeter Composition | Pulp/PET |
Woofer Composition | Carbon & Mica Reinforced IMPP |
Woofer Surround | Elastic polymer |
Woofer Magnet Composition | Ferrite |
Warranty | 1 Year |
Installation Specification | |
Max. Music Power (Nominal) | 450W MAX (90W Nom) |
Frequency Response | 29Hz - 28kHz |
Sensitivity (1W/1 m) | 92dB |
Impedance | 4Ω |
Mounting Depth | 72mm |
Cut-Out Dimensions | 153 x 222mm |
Grills Included | Yes |
