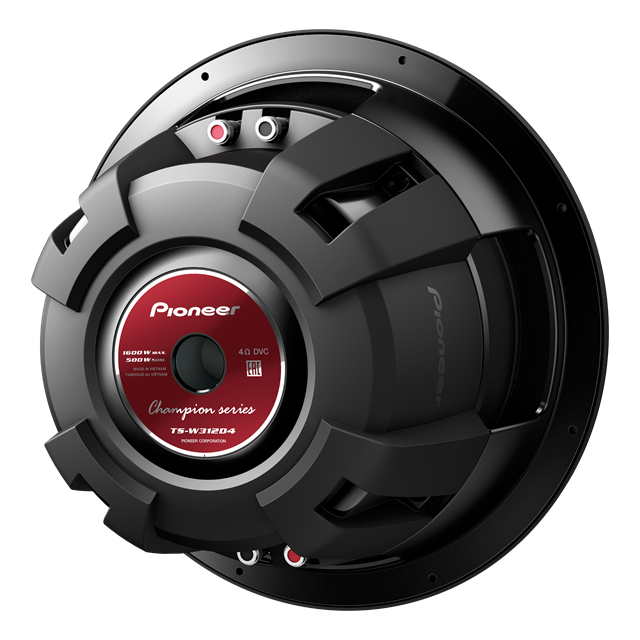

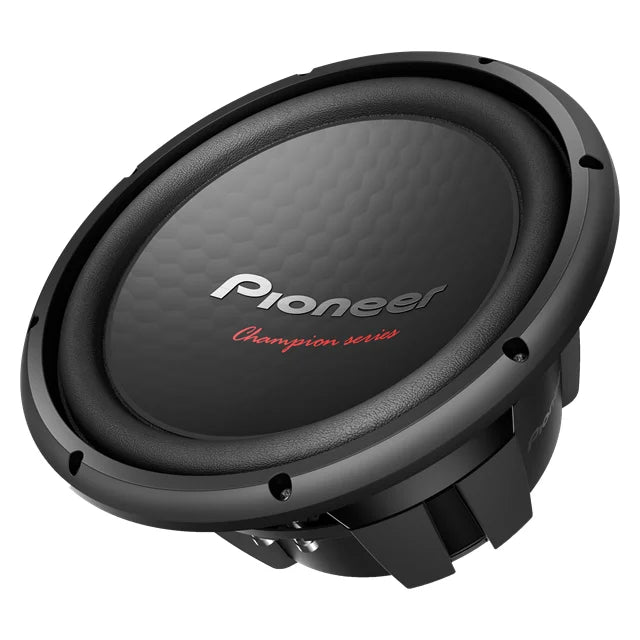

“CHAMPION” SERIES 12″ SUBWOOFER
• 1,600w Max (500w Nom)
• Dual 4Ω Voice Coil
• High rigidity (IMPP) composite seamless cone construction with honeycomb design
• Dual layer (elastic polymer & fibre) surround for a highly durable design.
• Massive 90 oz double stacked magnet and long voice coil with aluminium bobbin for increased bass and improved heat-dispersion.
“The Champion Has Returned”
Pioneer’s latest “Champion” series sub-woofers are here. The TS-W312D4 is designed to take the “Champion” Series name to the next level with a range of improvements.
With a light weight/high rigidity cone design, dual layer hybrid surround, large powerful motor assembly and enclosed basket structure, the new “Champion” Series sub-woofers not only look good but will perform even better!
Match with Pioneer’s GM-D Series amplifiers for an impressive in car experience!
RIGID CONE CONSTRUCTION
Combining a large rigid centre cap and lightweight high rigidity cone structure improves output performance and reduces loss. Improved dual layer (elastic polymer & fibre) hybrid surround provides a lighter and more durable surround than traditional rubber compounds.

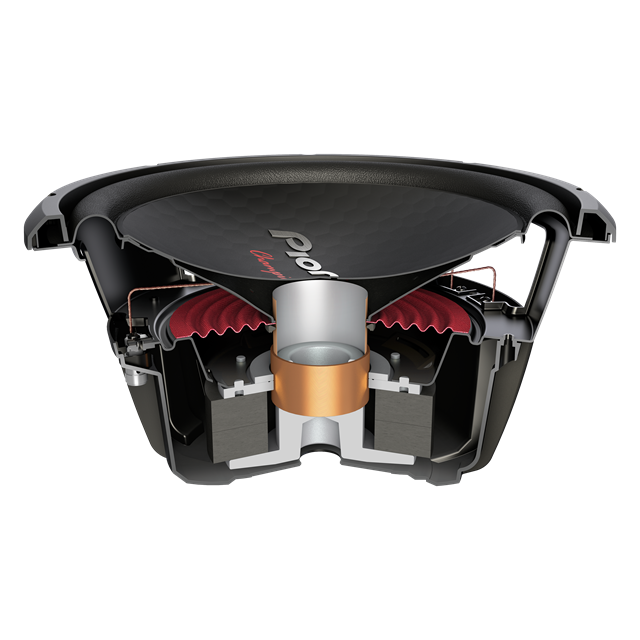

POWERFUL MOTOR ASSEMBLY
Combining a double stacked 90oz magnet (26% bigger than our previous model and some of the heaviest in it’s class) with a longer voice coil design, the “Champion” Series sub-woofers are designed for high power handling and endurance!
| General | |
| Size | 12" |
|---|---|
| Continuous Power Handling (RMS) | 500W |
| Maximum Peak Power Handling | 1,600W |
| Impedance | Dual 4Ω |
| Woofer Composition | Injection Molded Polypropylene (IMPP) with Honeycomb Design |
| Woofer Surround | Dual Layer (Elastic Polymer & Fibre) |
| Woofer Magnet Composition | Ferrite |
| Magnet Weight | 90oz |
| Mounting Depth | 157mm |
| Audio | |
| Hi-Res Certified | No |
| Sensitivity (1W/1 m) | 92dB |
| Frequency Range | 20 Hz to 1.6 kHz |
