Meticulous design and construction
Handmade in France, Focal's ES 100 KE 4" component speaker system is the culmination of Focal's desire for perfect sound. Focal's sound gurus engaged in intensive listening sessions designing this line of speakers so that you experience uncanny realism, sweeping dynamics, and breathtaking depth in your music.
A classic woofer with a twist
The ES 100 KE uses Focal's classic "W" sandwich cone design for incredibly accurate audio reproduction. The nimble Kevlar and glass-fiber woofers demonstrate the control needed to play delicate classical passages, yet they'll handle the power needed to drive your bass-heavy tracks with authority. Focal adds a Tuned Mass Damper (TMD®) rubber surround to the woofer design which minimizes harmonic distortion for the cleanest midrange possible.
These crossovers direct frequency traffic to the woofer and tweeter, while also providing you settings to get just the right sound.

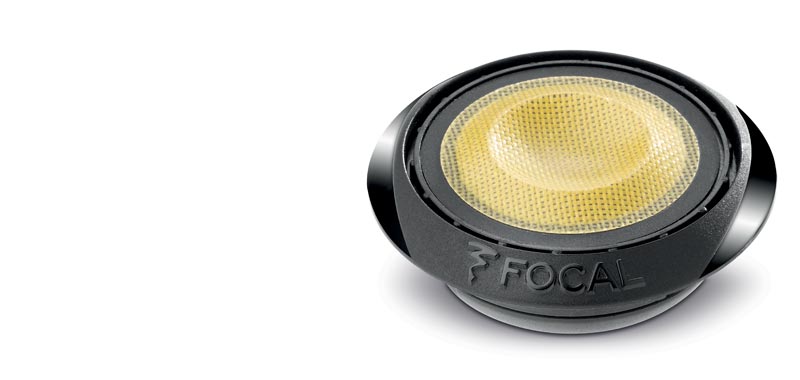

A tweeter designed for smooth highs
This system's tweeter employs a one-of-a-kind "M"-shaped inverted aramid fiber dome design that does a better job than ever of dispersing the highs with remarkable precision, all the way up to 22,000 Hz. The K2 Power crossovers use hand-made components developed by Focal to deliver an ideal blend of the highs and lows for a dynamic stereo image. Three levels of tweeter control and one for the woofer let you dial in the sound to your car's environment.
Product highlights:

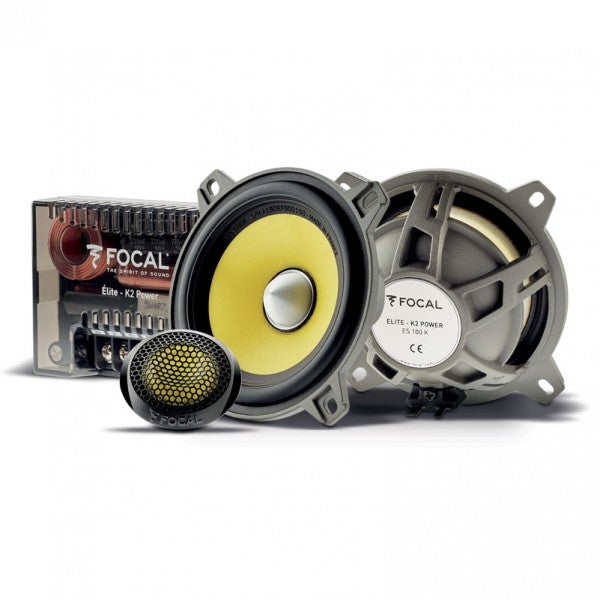

- component speaker system includes two 4" woofers, 2 tweeters, 2 external crossovers, and hardware
- K2 Kevlar sandwich woofer cone
- Tuned Mass Damper (TMD®) butyl rubber surround
- aramid fiber "M"-shaped inverted-dome tweeter
- 2-way external crossover with 3 tweeter level settings and one woofer crossover setting
- 4-ohm impedance
- power handling: 60 watts RMS (120 watts peak power)
- frequency response: 110-22,000 Hz
- sensitivity: 90 dB at 2.83V
- woofer mounting depth: 1.54"
- woofer and tweeter grilles included
- flush- and angle-mount tweeter brackets included
- warranty: 1 year
- MFR # ES100KE
- Item # 091ES10KE
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 4 | |
| Design | 2-way | |
| Tweeter Design | M-Shaped Inverted Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Aramid Fiber | |
| Woofer Composition | Aramid Fiber/Glass/Kevlar | |
| Woofer Surround | Butyl Rubber | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 87.5 | |
| Sensitivity at 2.83 volts | 90 | |
| Frequency Response | 110 - 22k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 60 | |
| Peak Power Handling (Watts) | 120 | |
| Top-mount Depth (Inches) | 1 9/16 | |
| Bottom-mount Depth (Inches) | 1 3/4 | |
| Cutout Diameter or Length (inches) | 3 11/16 | |
| Mounting Height (Inches) | 0.265 | |
| Frame Width | 4.015 | |
| Frame Length | 4.015 | |
What's in the box:
- Focal owner's manual
- Two woofers
- Two inverted dome tweeters (with attached 18" length of speaker wire)
- 2 Crossovers
- 2 Tweeter flush trim rings (installed)
- 2 Tweeter angled surface mount cups
- 2 Dome protective washers
- 2 Tweeter grilles (installed)
- 2 Woofer grilles
- 2 Woofer grille mounting rings
- 2 Woofer gaskets
- 8 Speed clips
- Four 3/4" Screws
- Eight 1-1/8" Screws
- Quick start guide
- 2 Focal window stickers
