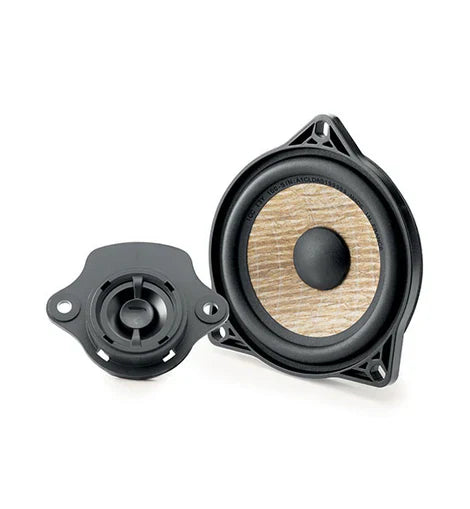

FOCAL INSIDE ICC T3Y 1004" SPEAKER AND 1" TWEETER
Customized sound for your Tesla
Audio upgrades for Tesla owners have so far been few and far between. But now the Inside Series brings Focal's famous sound to your electric vehicle. The best news of all is that Focal designs and builds these speakers to fit perfectly into Tesla Model 3 and Model Y vehicles. All the necessary mounting hardware is included, and integrated connectors connect to your existing factory speaker plugs — no cutting, splicing, or vehicle modifications required.
The flax woofer cone stays light and stiff while maintaining a natural overall sound.
Famous Focal sound
Focal incorporates their innovative flax woofer cones into the Inside ICC T3Y 100 4" center speaker. Focal discovered that a flax woofer cone produces a dynamic sound that's worthy of its reputation. At half the weight of fiberglass, these flax fibers help create a very rigid yet lightweight cone that ensures accuracy and limits unwanted vibrations.
You'll find another Focal innovation in these speakers: an inverted dome tweeter. Combined with the woofer, it produces clear, natural highs that let you hear your music the way it was meant to be heard.
Installation Note: Unless you're powering these speakers with an amplifier that has an active high-pass crossover, the included in-line filter must be used between the crossover and woofer. This system includes one woofer and one tweeter.
Product highlights:
- 4" woofer and 1" tweeter for center dash location
- designed to fit Tesla Model 3 and Model Y vehicles
- Tesla-specific wire connectors (no cutting required)
- 4" flax woofer with butyl rubber surround
- aluminum inverted dome tweeter
- impedance: 4 ohms
- power handling: 50 watts RMS (100 watts peak)
- frequency response: 150-20,000 Hz
- sensitivity: 87 dB
- grilles not included
- warranty: 1 year
- MFR # ICC T3Y 100
- Item # 091ICCT3Y1
Features & specs
General Speaker Size Vehicle-specific Design 2-way Tweeter Design 20mm Inverted Dome Impedance (Ohms) 4 Tweeter Composition Aluminum Woofer Composition Flax Woofer Surround Butyl Rubber Parts Warranty 1 Year Labor Warranty 1 Year Specifications Sensitivity (1W at 1 meter) 83.15 Sensitivity at 2.83 volts 87 Frequency Response 150 - 20k Hz Minimum RMS Wattage --- Maximum RMS Wattage 50 Peak Power Handling (Watts) 100 Top-mount Depth (Inches) 1 3/8 Bottom-mount Depth (Inches) N/A Cutout Diameter or Length (inches) 3 5/8 Mounting Height (Inches) 0.28 Frame Width 4.02 Frame Length 4.02
What's in the box:
- One center channel midrange
- One center channel tweeter
- 8" Wiring harness with in-line crossovers
- Two 5/8" Screws
- 2 Screw anchors
- Quick start guide (English/ French/ German/ Italian/ Spanish/ Portugese/ Dutch/ Polish/ Russian/ Chinese/ Korean/ Japanese/ Arabic)
- Focal window sticker
- 2 Adhesive backed Focal Inside badges
