JL Audio 12W6V3-D4 12-Inch (300 Mm) Subwoofer Driver, Dual 4 Ω

JL Audio 12W6V3-D4 12-Inch (300 Mm) Subwoofer Driver, Dual 4 Ω

Name: JL Audio 12W6V3-D4 12-Inch (300 Mm) Subwoofer Driver, Dual 4 Ω
Brand: JL Audio
SKU: 12W6v3-D4
Price: 1399.0 AUD
Availability: InStock

by JL Audio

$1,399.00

SKU 12W6v3-D4

Quantity

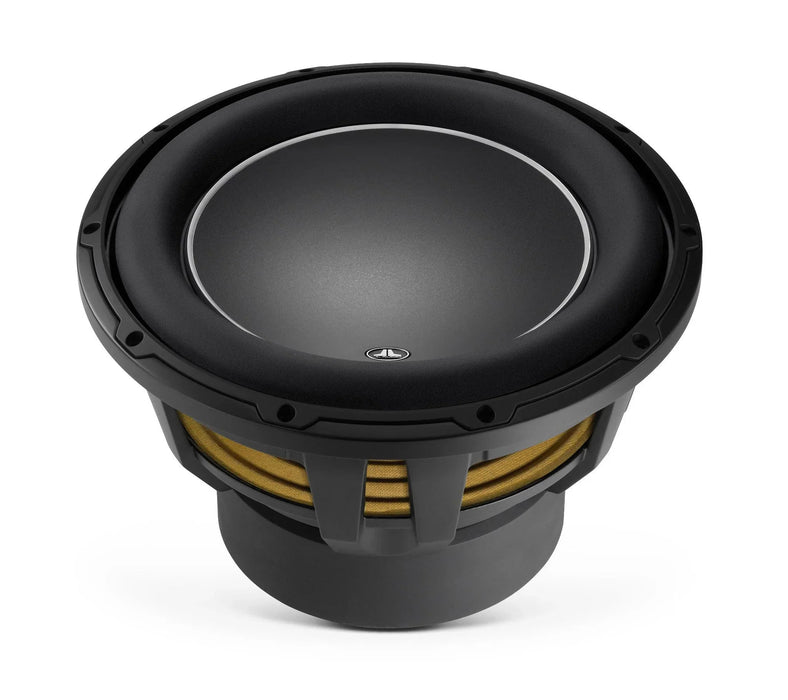

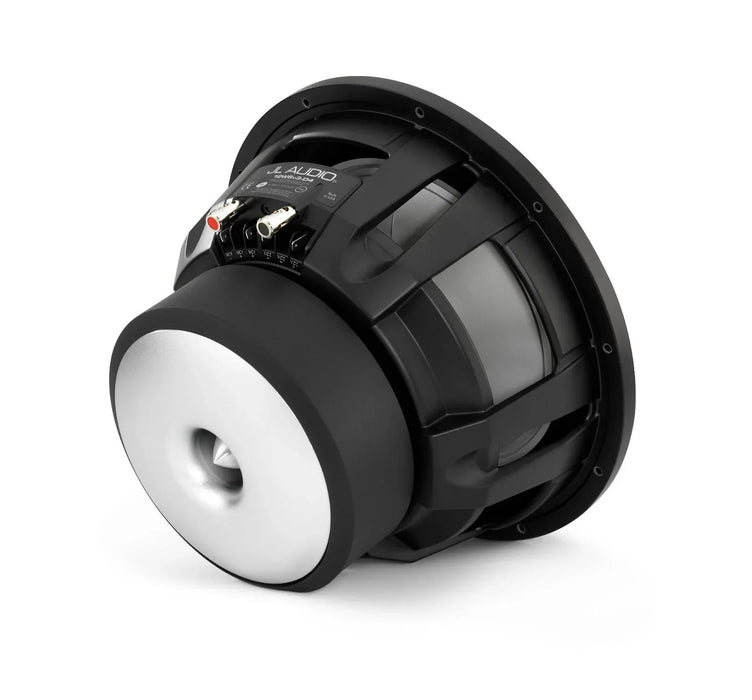

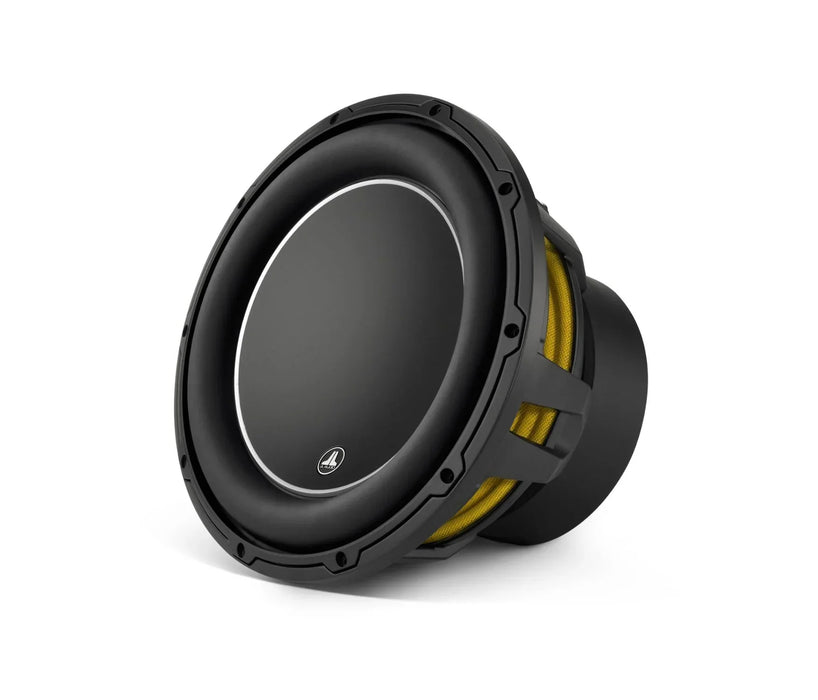

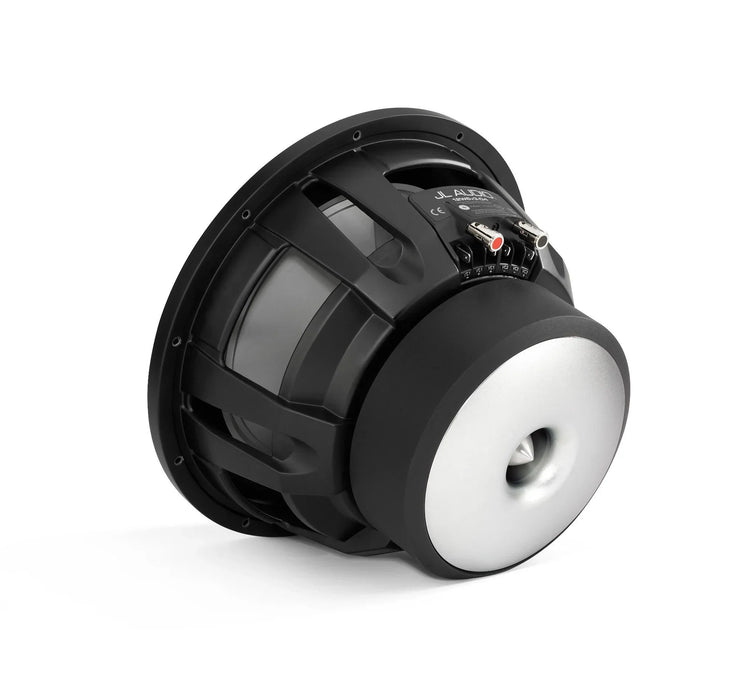

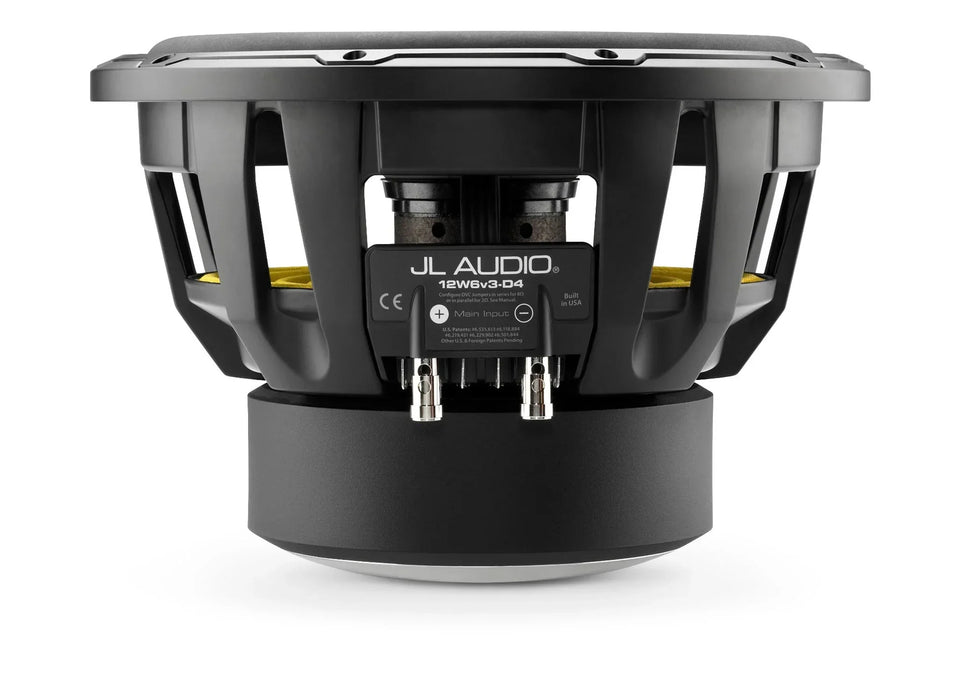

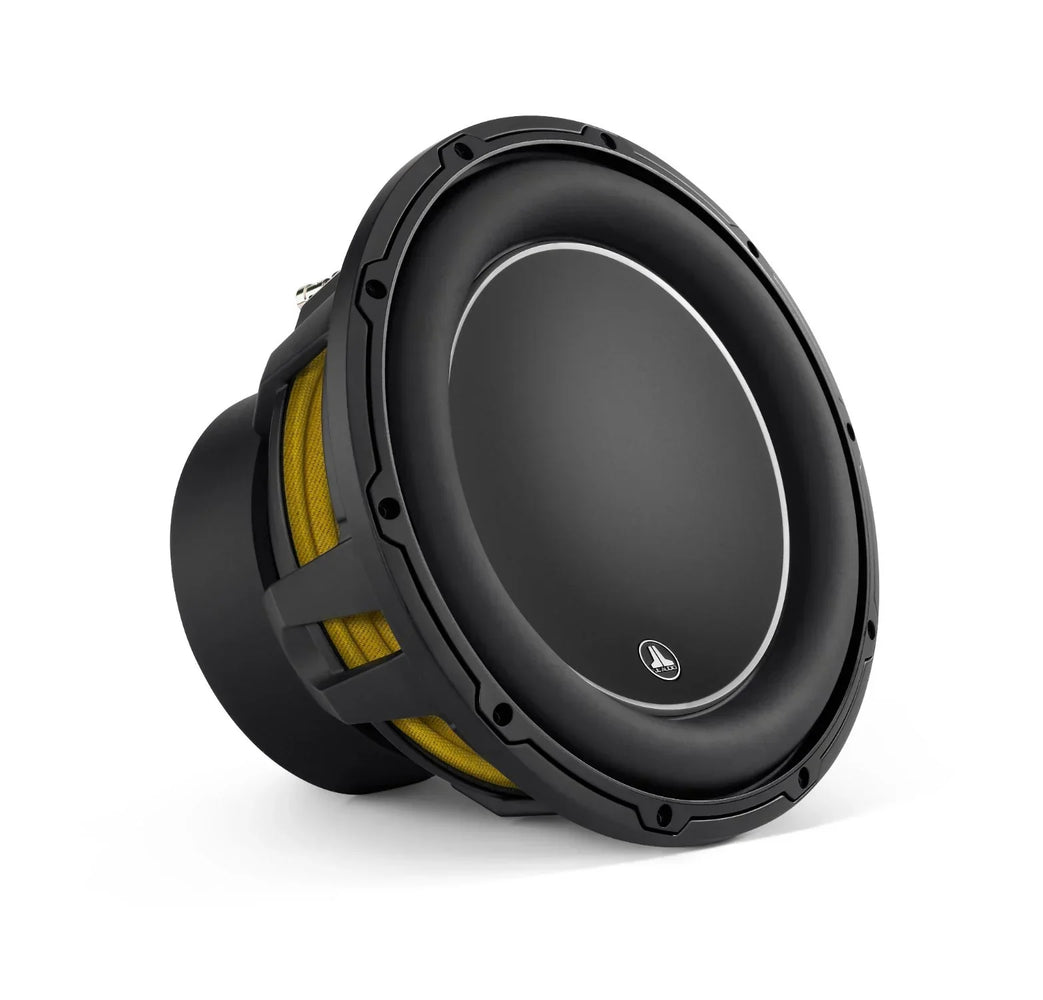

W6v3 12-inch Subwoofer (600 W, dual 4 Ω voice coils)

If you are seeking intensely powerful sub-bass that compromises nothing in terms of sound quality, the 12W6v3 is your ultimate ally. This highly advanced Subwoofer offers several technologies shared with the flagship W7AE subwoofers to provide powerful advantages in motor linearity and suspension behavior. These combine with a very efficient cooling circuit to deliver reduced distortion and outstanding dynamic balance.

The 12W6v3 is best used with amplifier power in the 200W - 600W range and is optimized to operate in a sealed enclosure with only 1.0 cu. ft. (28.3 l) of air space, or a 1.3 cu. ft (36.8 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

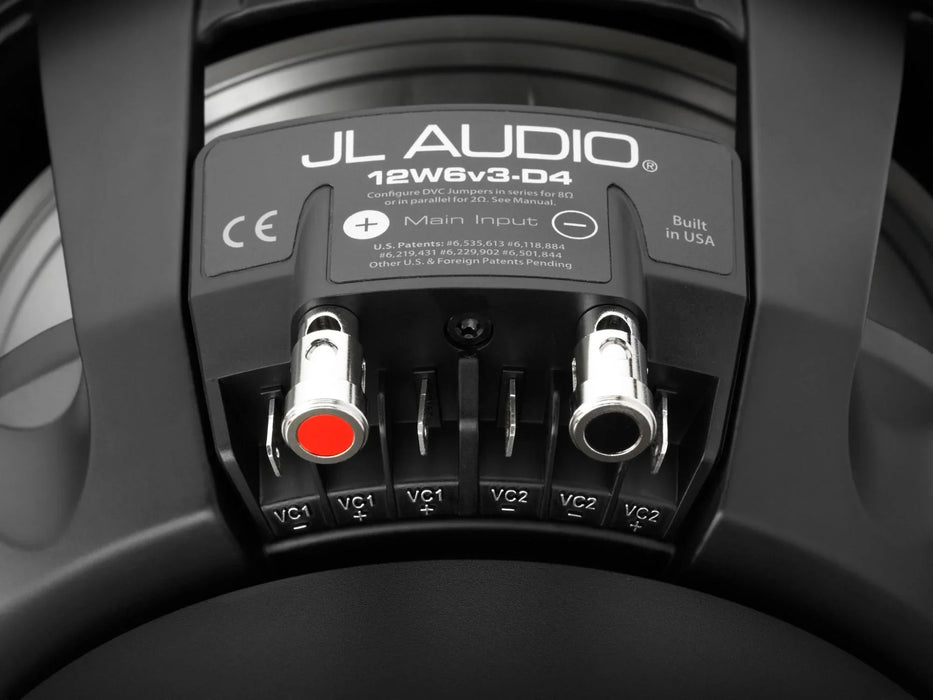

Greater excursion capability and higher power handling distinguish it from our 12W3v3 12-inch Subwoofer, allowing for higher output. Dual 4 Ω voice coils permit deploying the W6v3 as a 2 Ω or 8 Ω driver.

General Specifications

Power Chart for 12W6v3 Subwoofer with ideal Power Range of 200 - 600 W

Continuous Power Handling (RMS)	600 W
Recommended Amplifier Power (RMS)	200 - 600 W
Nominal Impedance (Znom)	Dual 4 Ω

Physical Specifications

Lineart Bottom-View and Side-View of 12W6v3 Subwoofer with dimension labels A-E

Nominal Diameter	12.0 in / 300 mm
Overall Diameter (A)	12.5 in / 318 mm
Mounting Hole Diameter (B)	11.02 in / 280 mm
Bolt Hole Circle Diameter (C)	11.86 in / 301 mm
Motor Outer Diameter (D)	7.0 in / 178 mm
Mounting Depth (E)	7.52 in / 191 mm
Required Pole Vent Clearance	0.50 in / 13 mm
Driver Displacement	0.105 cu ft / 2.97 L
Net Weight	25.6 lb / 11.6 kg

Parameters

Free Air Resonance (Fs)	26.919 Hz
Electrical “Q” (Qes)	0.487
Mechanical “Q” (Qms)	9.365
Total Speaker “Q” (Qts)	0.463
Equivalent Compliance (Vas)	1.920 cu ft / 54.37 L
One-Way Linear Excursion (Xmax)*	0.75 in / 19 mm
Reference Efficiency (no)	0.11%
Efficiency (1 W / 1 m)**	85.4 dB SPL
Effective Piston Area (Sd)	75.338 sq in / 0.0486 sq m
DC Resistance (Re)***	6.493 Ω
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. For parallel-wired voice coils, divide "Re" by 4. All other specifications remain the same. * Re (DC resistance) is measured with the voice coils in series, for parallel-wired specification divide Re by 4. All other specifications remain the same.

Sealed Enclosure Specifications

Lineart diagram of empty sealed enclosure with Height (H), Width (W) and Depth (D) and port length (L) and port inner-diameter (ID) dimension labels

Wall Thickness	0.75 in / 19 mm
Front Baffle Thickness	0.75 in / 19 mm
Volume (net int.)	1.0 cu ft / 28.3 L
External Width (W)	15 in / 381 mm
External Height (H)	15 in / 381 mm
External Depth (D)	12 in / 305 mm
F3	41.62 Hz
Fc	45.99 Hz
Qtc	0.7912
Download detailed sealed enclosure information Enclosure Notes * The W6v3’s employ a pole vent to remove heat and pressure from the inside of the speaker. This vent is located around the JL Audio badge at the rear of the speaker. A minimum distance of 0.5 in (13 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent. * The enclosure recommendations listed are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure. * All enclosure volumes listed are net internal volumes! Box volume displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions listed have already taken this into account. * When using two subwoofers in a common enclosure simply double the required volume and, in the case of a ported enclosure, use two times the recommended port(s). * We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and amplifiers. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance. Safety Notice Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity. When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.

Ported Enclosure Specifications

Lineart diagram of empty slot ported enclosure with physical specification labels

Wall Thickness	0.75 in / 19 mm
Front Baffle Thickness	0.75 in / 19 mm
Volume (net int.)	1.3 cu ft / 36.8 L
External Width (W)	27 in / 686 mm
External Height (H)	14 in / 356 mm
External Depth (D)	12.5 in / 318 mm
Internal Slot Port Width (SW)	1.75 in / 44 mm
Internal Slot Port Height (SH)	12.5 in / 318 mm
Internal Slot Port Length (SL)	37.125 in / 943 mm
Port Extension Length (EL)	21.250 in / 540 mm
Tuning Frequency (Fb)	33 Hz
F3	31 Hz
Download detailed ported enclosure information Enclosure Notes * The W6v3’s employ a pole vent to remove heat and pressure from the inside of the speaker. A minimum distance of 0.5 in (13 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent. * The enclosure recommendations listed are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure. * All enclosure volumes listed are net internal volumes! Box volume displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions listed have already taken this into account. * When using two subwoofers in a common enclosure simply double the required volume and, in the case of a ported enclosure, use two times the recommended port(s). * We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and amplifiers. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance. Safety Notice Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity. When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
