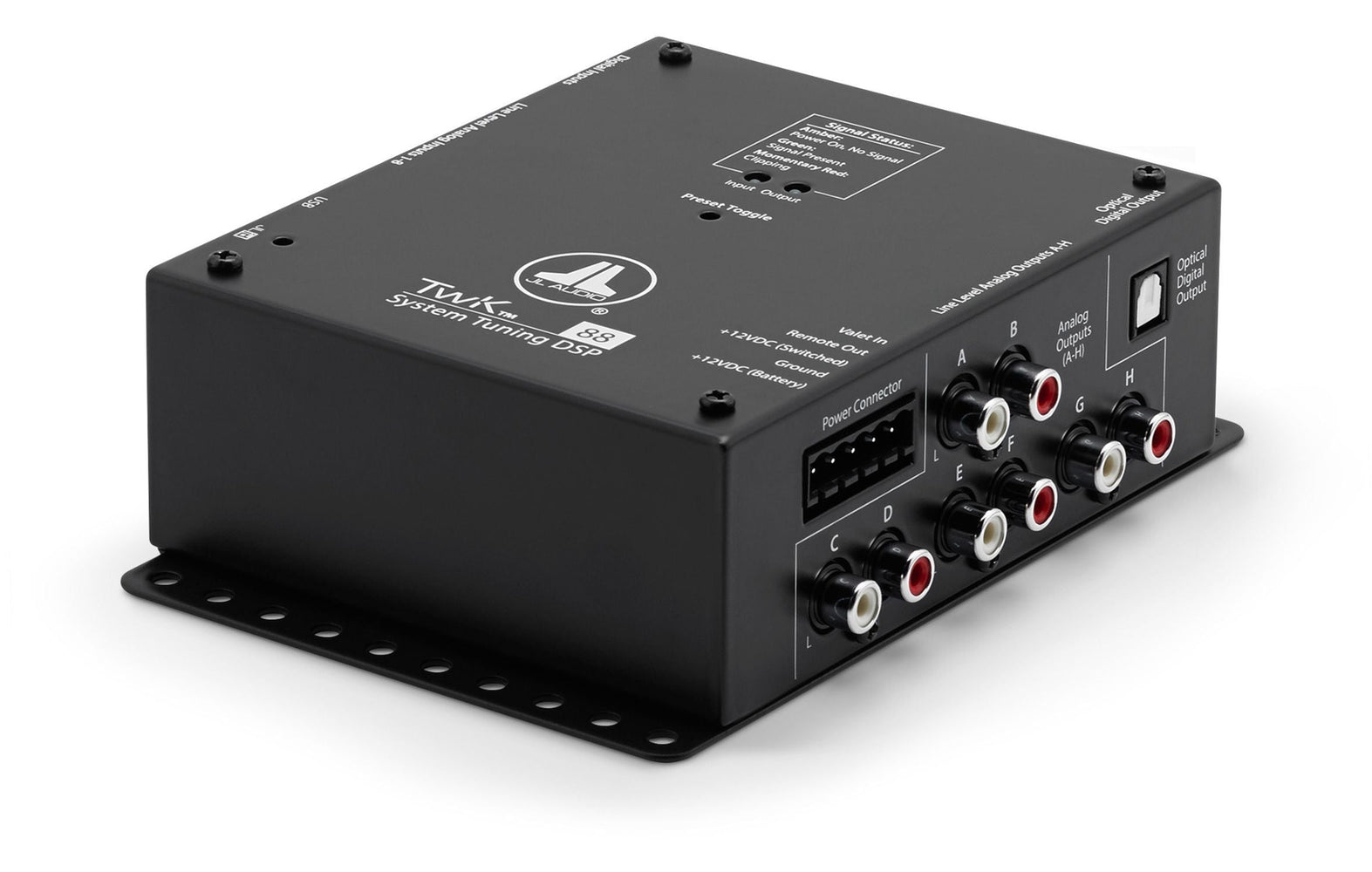

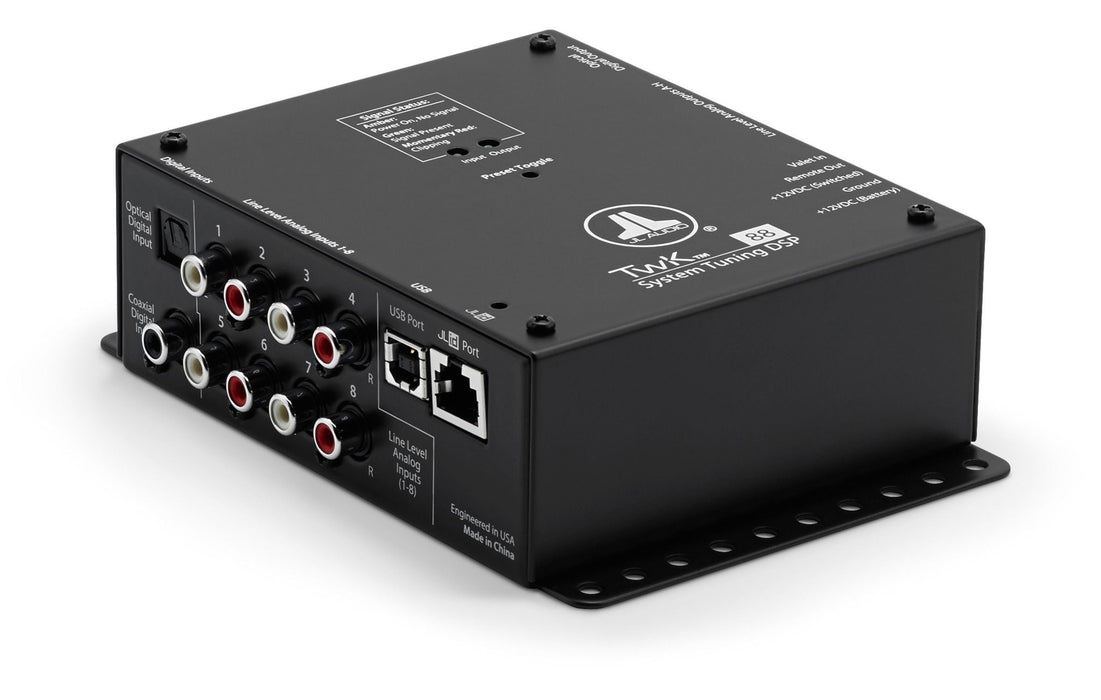

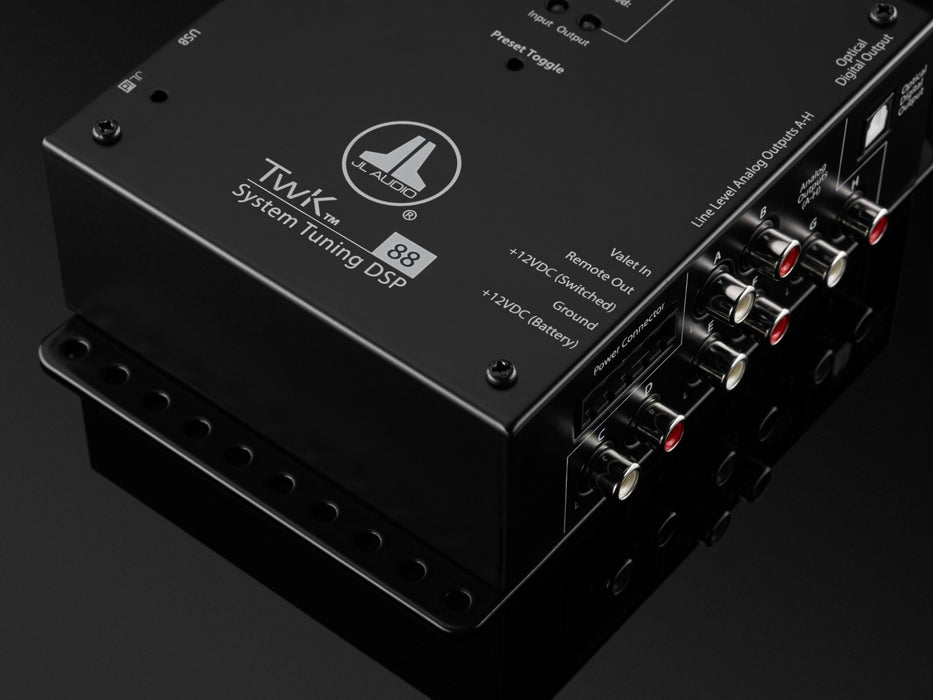

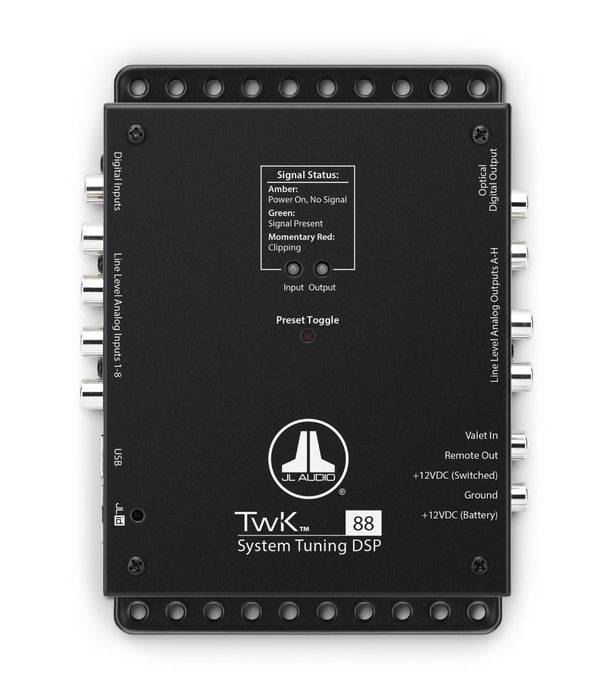

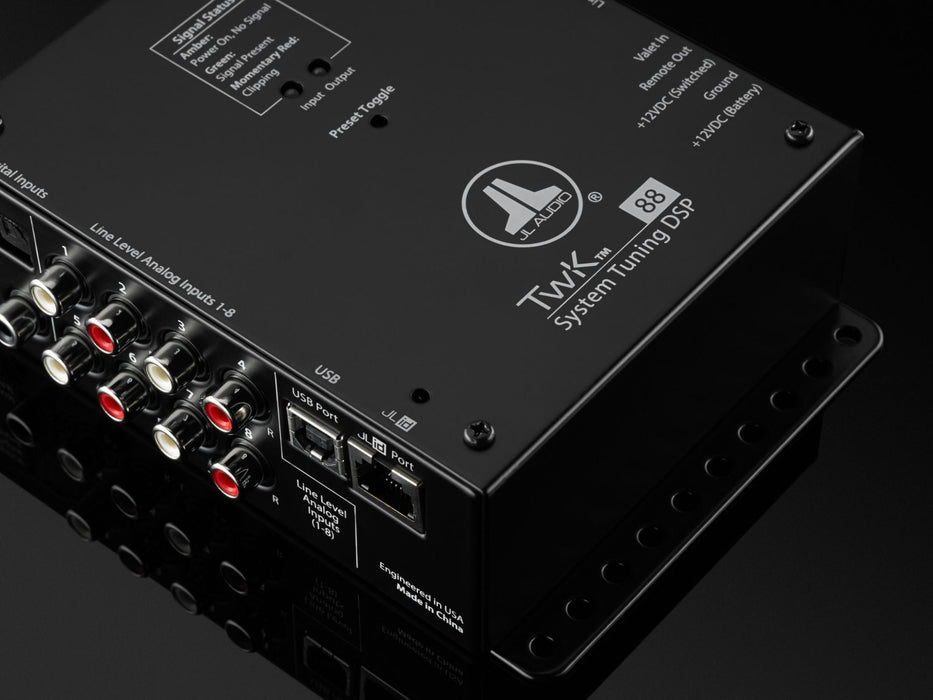

JL Audio TWK-88 System Tuning DSP controlled by TüN software, 8-channel Analog & Digital Inputs / 8-ch. Analog Outputs
by JL Audio
$999.00
SKU TWK-88
The TwK™ 88 is a state-of-the-art digital signal processor engineered to deliver world-class system tuning capabilities in an easy-to-use format.
Equipped with an advanced 24-bit DSP processor, the TwK™ 88 includes flexible input/output options, 80 total bands of equalization and powerful mixing tools.
The included DRC-200 Digital Remote Controller offers dual level controls, toggles up to six presets, and has an LED indicator.
Control the TwK™ 88’s entire feature set by connecting it to your PC via USB, using the companion TüN™ Software interface.
FEATURES:

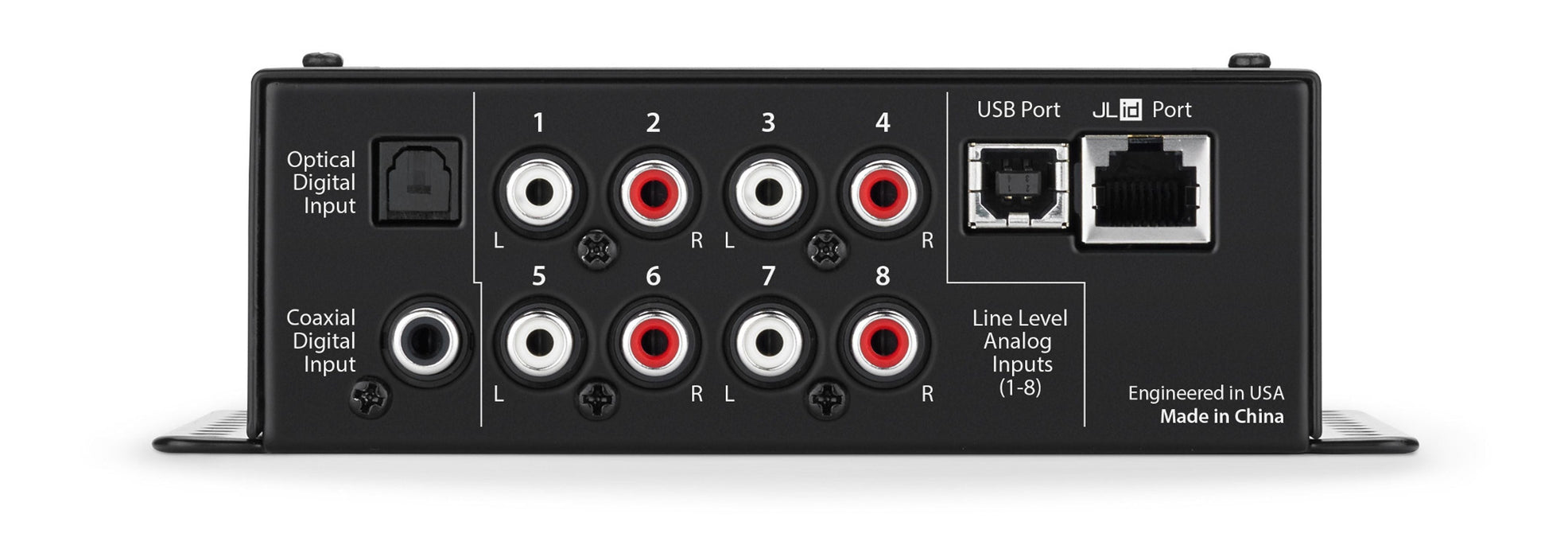

- Flexible input design with 8 differential-balanced, line-level analog inputs (RCA), accepting line-level signals up to 7.1V (RMS)
- Separate optical (Toslink) and coaxial digital inputs for connection to digital S/PDIF sources
- Flexible input mixer allows input channels to be combined with full control over each input’s level and polarity
- 8 banks of 10-band graphic or parametric equalizers with configurable EQ assignment
- Powerful crossover section with fully variable, high-pass and low-pass filters, crossover slopes are selectable from 6 dB/octave to 48 dB/octave (in 6 dB/octave increments)
- Configurable polarity and delay settings, with separate entries for speaker distance plus offset control; fully linkable with other channels, in any combination, for adjustment
- Precise output level controls, adjustable in 0.5 or 0.1 dB increments, fully linkable with other channels, in any combination

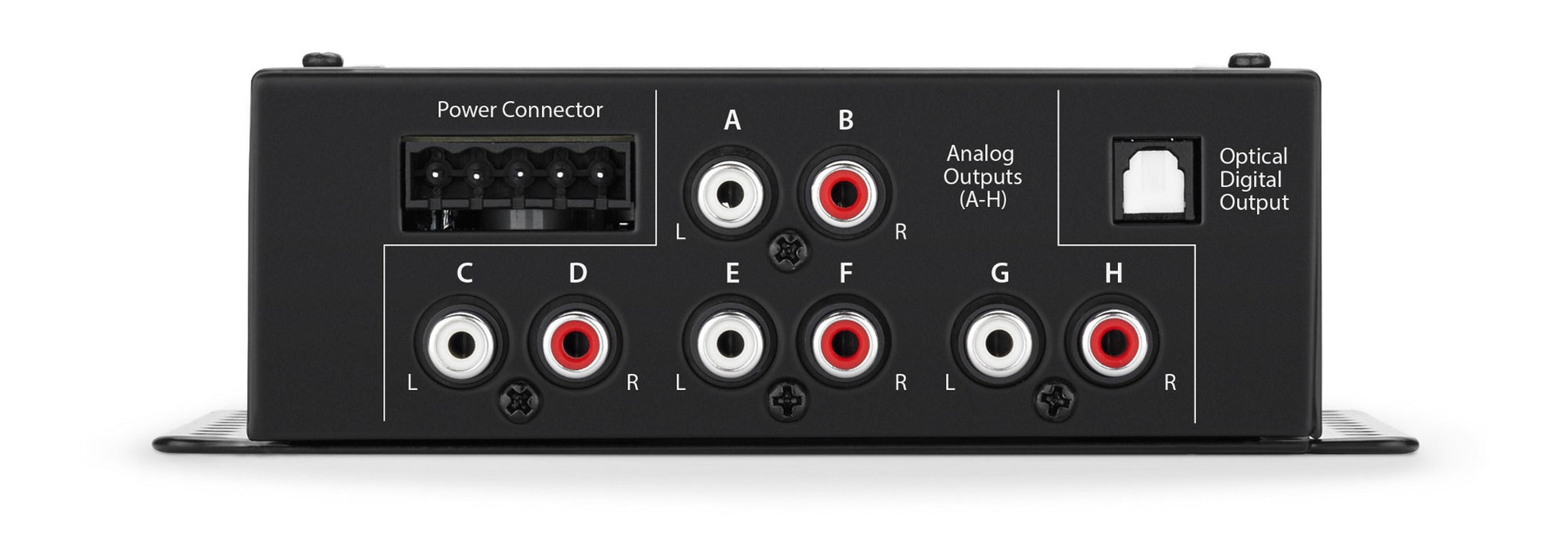

- 8 analog, line-level RCA output jacks (4V RMS)
- Optical (Toslink) output jack provides a pass-through digital audio (S/PDIF) signal from any pair of input channels, with no signal processing applied
- Remote turn-on output (+12VDC) for activating aftermarket audio equipment
- JLid™ Port allows connection of the included DRC-200 Digital Remote Controller to add dual configurable level controls, preset selection and LED status reporting from the driver's seat
SPECIFICATIONS:
- Power Supply Type: Regulated DC-DC SMPS
- Input Operating Voltage: 10 - 16 VDC
- Standby Current Draw: <1.5 mA
- Operating Current Draw: 0.7 A
- Recommended Fuse Value: 1 A
- Input Channels: 8
- Input Type: Line-level, Differential-Balanced
- Input Voltage Range: 250 mV - 7.1 V RMS
- Minimum Input Voltage: 10 mV RMS
- Input Level Setting: 11 discrete selections from 250 mV - 7.1V RMS
- Output Channels: 8
- Analog Output: Unbalanced, stereo RCA jacks
- Digital Output: Optical (Toslink) output (S/PDIF)
- Output Impedance: 450 Ω
- Latency Analog - Analog: 5.425 mS
- Latency Analog - Optical: 5.470 mS
- Latency Optical - Optical: 4.860 mS
- Latency Optical - Analog: 4.805 mS
- S/N Ratio: 98 dB (A-Weighted, referred to 4V RMS Output)
- THD+N @ Rated Output: 0.02% (20 Hz - 20 kHz)
- Audio Resolution: 24 bit / 48 kHz
- Number of EQ Bands: 10 x 8 Channels
- Remote Level Control: Included (DRC-200)
- Remote Level Functions: Master Volume Control + Trim; Master Volume Control + Fader; Zone Control, LED Status Reporting
