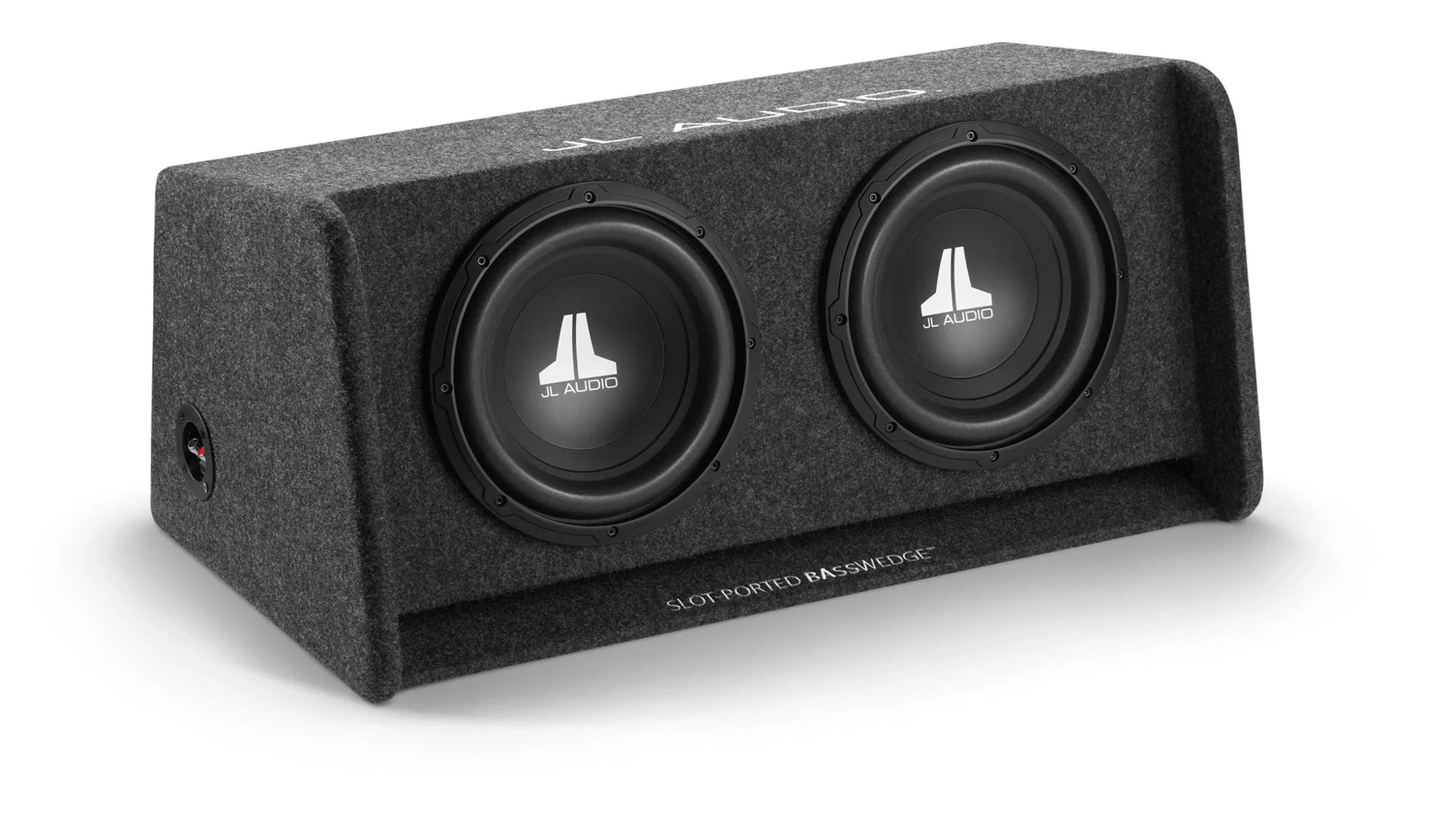

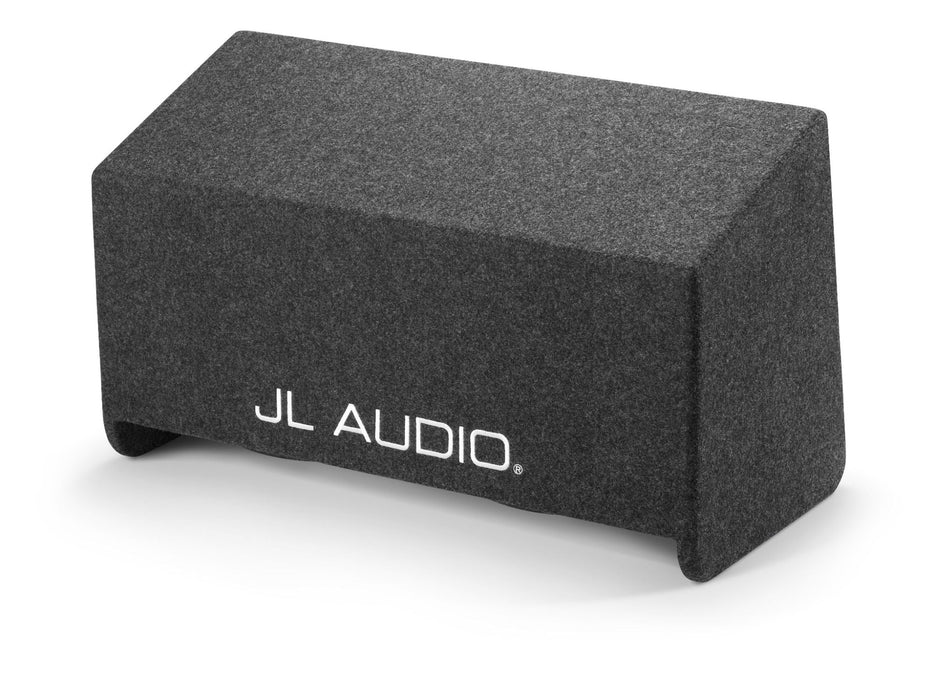

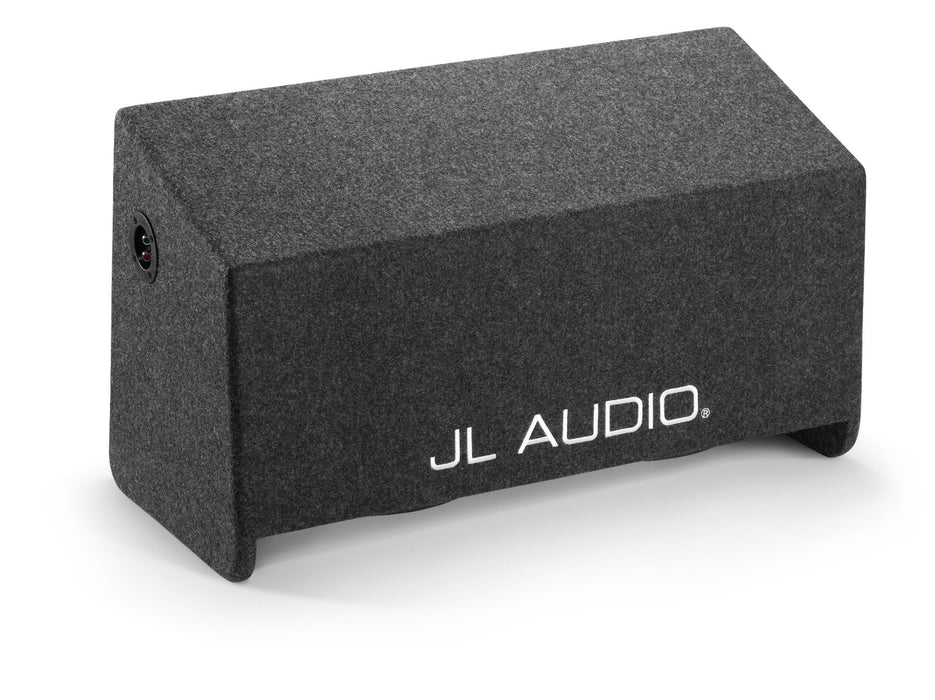

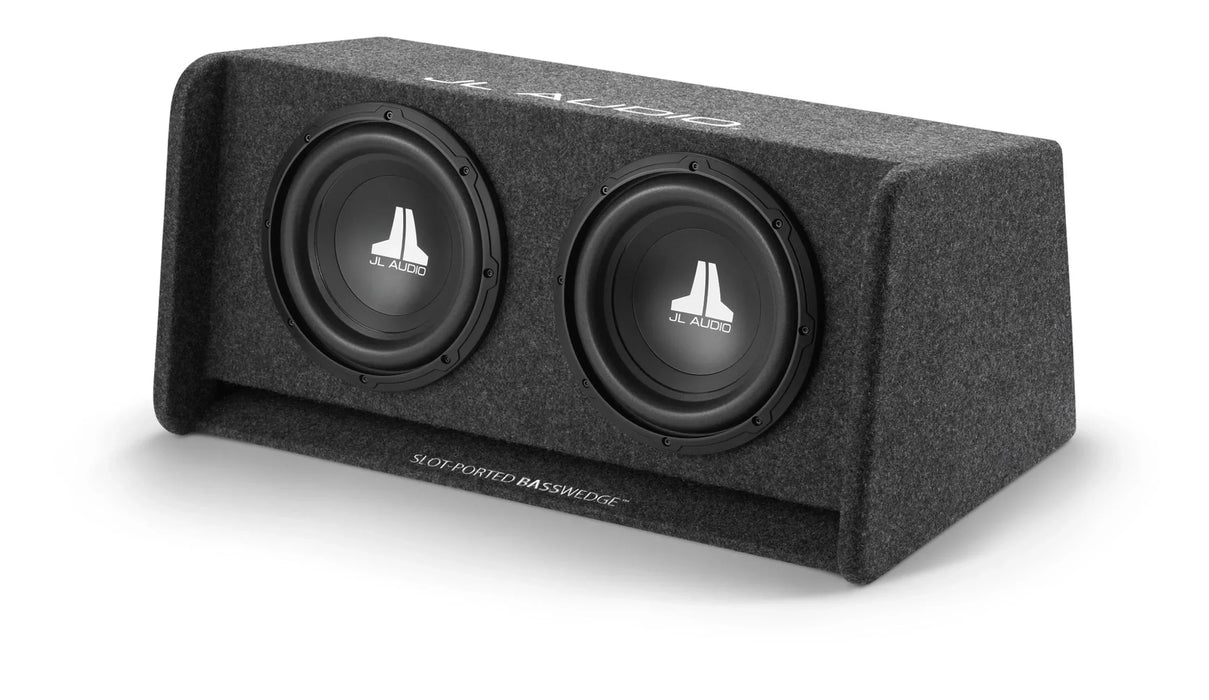

JL AUDIO CP210-W0V3 DUAL 10W0V3 BASSWEDGE, PORTED, 2 Ω
Product highlights
•Dual 10" 10W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo
Subwoofer Features
- Dual 10" W0v3 Series Subwoofer
- Manufacturer preloaded with a JL Audio 10W0v3-4 10" Subwoofer, JL Audio's best-selling subwoofer!
- Power Handling:RMS: 600 watts
- Recommended Power Range: 150 - 600 watts
- Impedance: 2-Ohm
- Mineral-filled, polypropylene cone woofer for excellent durability
- Large roll surround for generous amounts of excursion
- Elevated frame cooling brings air directly to the voice coil
- Designed for compact sealed enclosures or medium-sized ported enclosures
- Large excursion for louder bass and less distortion
- DMA Optimized motor system reduces distortion and tight, clean bass
- Lead wire woven into spider for added strength
- Metallic silver frame finish
- 2.0" High temperature voice coil
- Free Air Resonance (Fs): 32.09 Hz
- Sensitivity: 84.07 dB
- Xmax: 11.4 mm
- Reference Efficiency (no): 0.1500%
- Frequency response: ~26 ~ 250 Hz
- Black Steel-Mesh Grille Insert Available: JL Audio SGRU-10
- Matching Amplifier:
- JL Audio XD600/1v2
- JL Audio JX500/1D
- Authorized Internet Dealer
- 2 Year Manufacturer's Warranty
Enclosure Features:
- 10" Slot Ported MDF Subwoofer Enclosure
- Loaded with two 10W0v3 10" subwoofers
- Designed for forward, rear or down-firing installation
- Top-quality MDF construction
- Durable dark gray carpet finish
- Five-Way binding post connectors
- Embroidered JL Audio logo
- Embroidered "Slot-Ported BassWedge" logo on port mouth
- 2 Ohm final impedance
- Dimensions: 17-1/2"TD x 14"BD x 29-5/8"W x 13-7/8"H
JL Model Comparison
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | RMS Power | Cone Material | Surround Material | Sensitivity (dB) | Frequency Response | Xmax (mm | Terminals | Made In America | |
| W7 Series | 500-1500 Watts | Polypropylene | Foam Overroll | 82.7 - 86.3 | 15-250 Hz | 19-32 | Push Terminals | Yes | |
| W6 Series | 600 Watts | Polypropylene | Rubber | 82.7 - 85.4 | 20-200 Hz | 19 | Push Terminals | Yes |
|
| W3 Series | 150-600 Watts | Polypropylene | Rubber | 80.5-87.90 | 20-250 Hz | 8.89-15.5 | Push Terminals | Yes |
|
| W1 Series | 150-300 Watts | Polypropylene | Rubber | 83.9-86.1 | 22-200 | 8-11 | Push Terminals | ||
| W0 Series | 300-500 Watts | Polypropylene | Foam | 84-88.20 | 20-250 Hz | 11.4-12.7 | Push Terminals | ||
| WX Series | 200 Watts | Polypropylene | Foam | 86-87.17 | 22-250 Hz | 10 | Spade Terminals | ||
